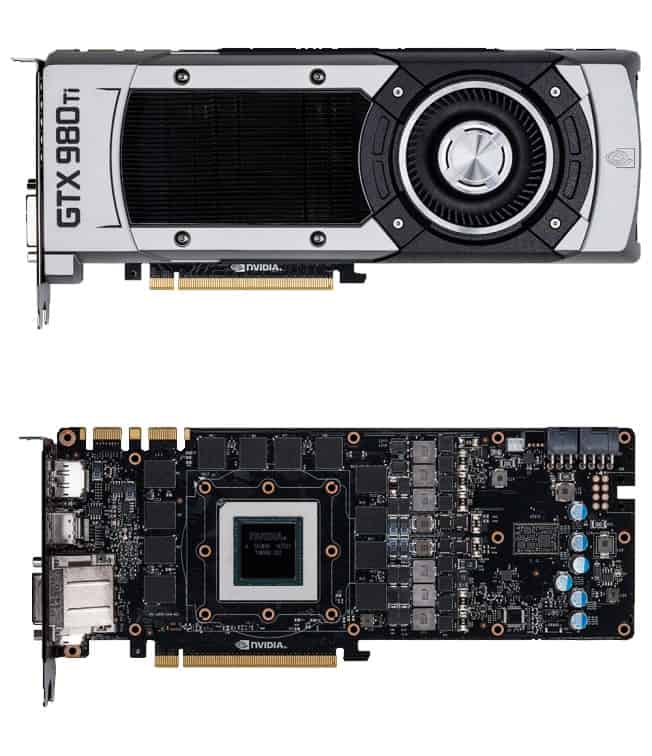

In this article you find a list all GeForce GTX 980 Ti graphics cards sorted by manufacturers with names, models and specifications. If you know a model we missed, please let us know in the comments.
GPU |
||||||||
| GPU Name | GM200 | |||||||
| GPU Variant | GM200-310-A1 | |||||||
| Process Technology | 28nm | |||||||
| Transistors | 8.00 Billion | |||||||
| Die Size | 601 mmยฒ | |||||||
Graphic Card |
||||||||
| Release date | Jun 2nd, 2015 | |||||||
| Launch Price | 649 USD | |||||||
| Interface | PCIe 3.0 x16 | |||||||
Clock Speeds |
||||||||
| GPU Clock | 1000 MHz | |||||||
| Boost Clock | 1076 MHz | |||||||
| Memory Clock | 1753 MHz | |||||||
Memory |
||||||||
| Memory Size | 6144 MB | |||||||
| Memory Type | GDDR5 | |||||||
| Memory Bus | 384 bit | |||||||
| Bandwidth | 337 GB/s | |||||||
Architecture Details |
||||||||
| Shading Units | 2816 | |||||||
| TMUs | 176 | |||||||
| ROPs | 96 | |||||||
| SMM Count | 22 | |||||||
| Pixel Rate | 96.0 GPixel/s | |||||||
| Texture Rate | 176 GTexel/s | |||||||
| Floating-point Perfomance | 5,632 GFLOPS | |||||||
Features |
||||||||
| DirectX | 12.0 | |||||||
| OpenGL | 4.5 | |||||||
| OpenCL | 1.2 | |||||||
| Shader Model | 5.0 | |||||||
Board Design |
||||||||
| Slot Width | Dual-slot | |||||||
| Lenght | 267 mm | |||||||
| TDP | 250 W | |||||||
| Outputs | 1x DVI + 1x HDMI + 3x DisplayPort | |||||||
| Power Connectors | 1x 6-pin + 1x 8-pin | |||||||
